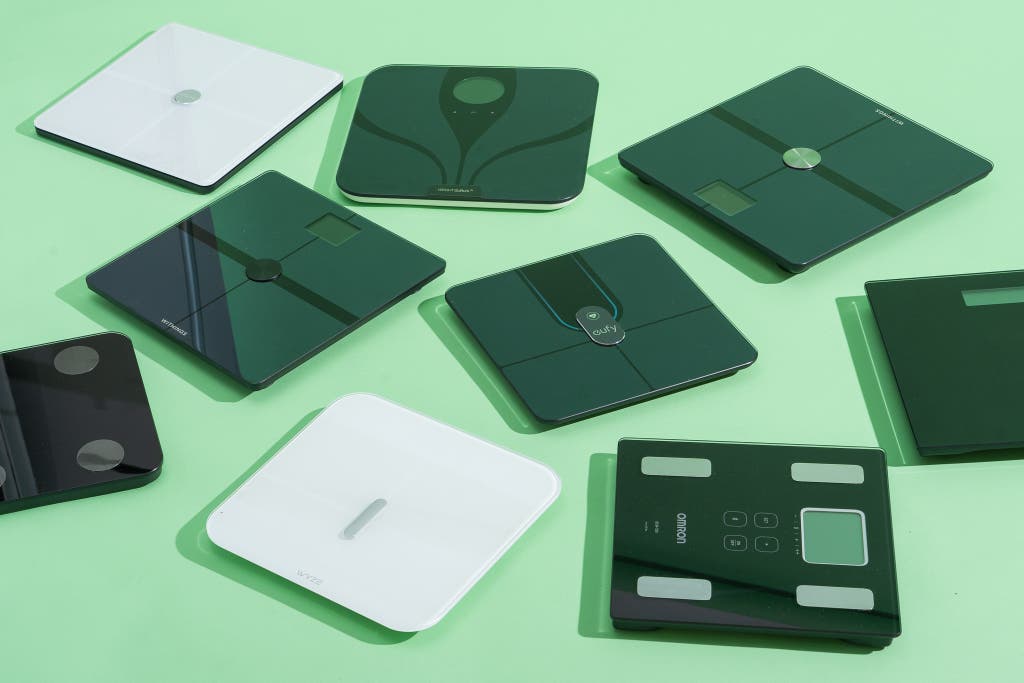

For years, the smart scale market has been divided into two very different camps. On one side, you have the standard $40 to $80 glass squares that measure weight and guestimate body fat using four electrodes under your feet. On the other, you have the "professional" tier—devices like the Withings Body Scan or medical-grade InBody machines—that cost upwards of $500 and use a retractable handlebar to provide a complete segmental breakdown of your physique.
The gap between "casual tracking" and "professional analysis" has always been a four-hundred-dollar chasm. Until now.
The Wyze Scale Ultra BodyScan is a direct challenge to the status quo. At just $120, it promises the same 8-electrode technology found in premium clinical devices, delivering a detailed map of your muscle and fat distribution across your arms, legs, and torso. As someone who has integrated dozens of IoT health devices into my home ecosystem, the question isn't just about the price—it's whether Wyze has actually pulled off comparable functionality at a 76% lower price point, or if the "Ultra" experience comes with significant compromises.
Is the Wyze Scale Ultra BodyScan worth it? Absolutely. For $120, you are getting a professional-grade diagnostic tool that tracks 13 key health metrics with Wi-Fi syncing, effectively rendering the $500 alternatives obsolete for most home users.
Design and Hardware: The Handlebar Difference

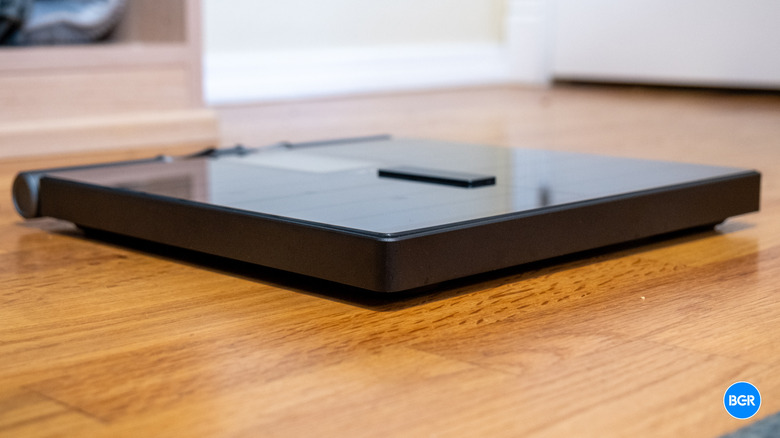

The first thing you notice about the Wyze Scale Ultra BodyScan is its footprint. This isn't a dainty bathroom accessory; it’s a substantial piece of hardware measuring 15.4 x 13.4 inches. The surface is covered in high-quality ITO-coated (indium tin oxide) glass, which acts as the conductive surface for the electrodes. Unlike older scales with visible metal circles, the ITO coating allows the entire surface to remain sleek and minimalist while maintaining high sensitivity.
The centerpiece of the hardware is the 4.3-inch TFT color display. In the world of smart home tech, on-device feedback is king. I don't always want to go hunting for my smartphone while I'm still half-asleep in the bathroom. The Ultra’s screen is vibrant and customizable, showing you weight trends, heart rate, and segmental body fat directly on the scale.

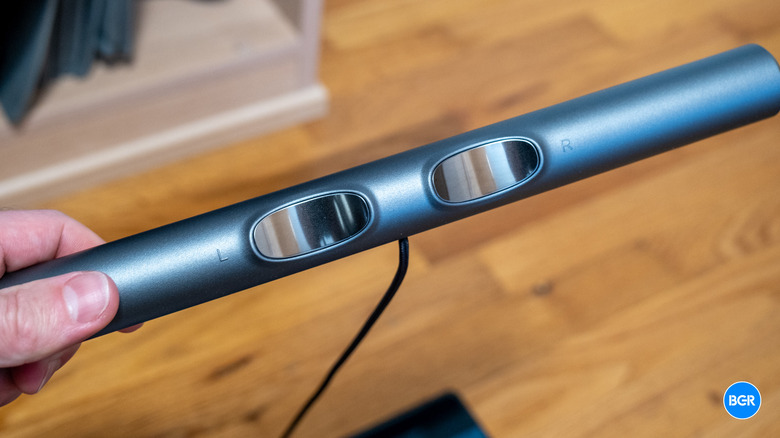

But the real "Ultra" feature is the retractable handlebar tucked into the top of the unit. While standard smart scales only use four electrodes (two for each foot), the BodyScan model adds four more electrodes into this handle. When you pull it up and hold it during a scan, the scale sends a low-level electrical current through your entire body—not just your legs. This creates a complete circuit through your arms and torso, which is the secret sauce for segmental analysis.
In terms of power, Wyze opted for four AAA batteries rather than a built-in rechargeable lithium-ion battery. While some might see this as a "budget" choice, I actually prefer it for home automation longevity. A rechargeable battery eventually degrades and dies; a AAA-powered device can theoretically last decades. Wyze claims an 8-month battery life, which aligns with my testing so far.
Professional Grade Metrics: Beyond Just Body Fat
Standard smart scales use a technique called Bioelectrical Impedance Analysis (BIA), but they are limited by physics. Because the current only travels from one foot to the other, it mostly measures your lower body and uses algorithms to "guess" the rest.
The Wyze Scale Ultra BodyScan eliminates the guesswork. By utilizing the 8-electrode system, it provides a 5-point segmental analysis: left arm, right arm, left leg, right leg, and torso. This is vital for athletes or those in physical therapy who need to identify muscle imbalances or track specific gains in the upper body versus the lower body.
The device tracks a total of 13 key health metrics:
- Weight
- Body Fat Percentage
- Muscle Mass
- Visceral Fat (the dangerous fat around organs)
- Metabolic Age
- Bone Mass
- Body Water Percentage
- Protein Level
- Basal Metabolic Rate (BMR)
- Subcutaneous Fat
- Skeletal Muscle Mass
- Lean Body Mass
- Heart Rate
Beyond the data points, Wyze has included specialized modes that make the scale more versatile for a household. There is an Athlete Mode for those with higher muscle density (which can confuse standard BIA scales), a Pregnancy Mode that turns off the electrical current for safety, and even Baby, Pet, and Luggage modes. The luggage mode is a personal favorite; you simply step on the scale, then step on again holding your suitcase, and it calculates the difference automatically.
App Integration and Seamless Syncing
One of my biggest pet peeves with smart home devices is "Bluetooth-only" syncing. Having to open an app and wait for a connection just to log your weight is a friction point that leads to abandoned habits. The Wyze Scale Ultra BodyScan solves this with dual Wi-Fi and Bluetooth connectivity.
Once configured, the scale syncs via your home Wi-Fi. You can step on, get your full segmental analysis, and walk away. The data is waiting for you in the cloud. For the data-obsessed, Wyze integrates seamlessly with Apple Health, Fitbit, and Google Health Connect, ensuring your weight data populates into whatever fitness ecosystem you already use.

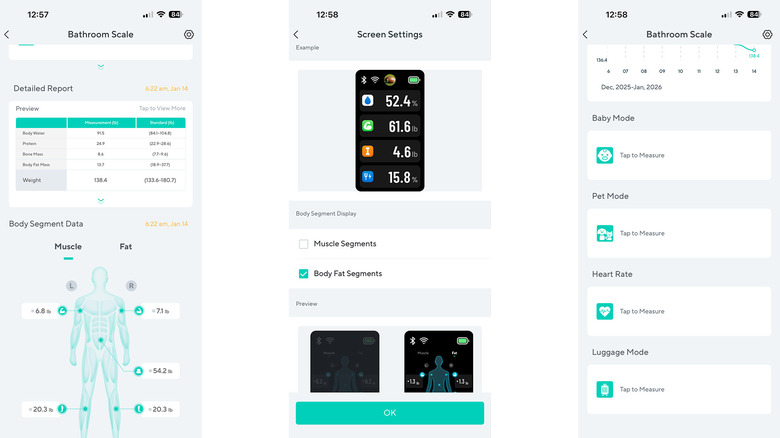

The app interface is clean and emphasizes trends over daily fluctuations. It provides a visual map of your body, showing exactly where your muscle mass is concentrated. This "body map" is surprisingly motivating; seeing your "Torso Muscle Mass" tick up after a month of heavy lifting is far more rewarding than just seeing the total weight number change.
The scale also supports auto-recognition for up to 8 users. In my testing, the scale was nearly flawless at identifying which family member was stepping on based on their weight profile. If two people are of a similar weight, the scale will ask you to confirm your identity on the color display with a quick tap of your foot.
The Comparison: Wyze vs. Withings vs. InBody

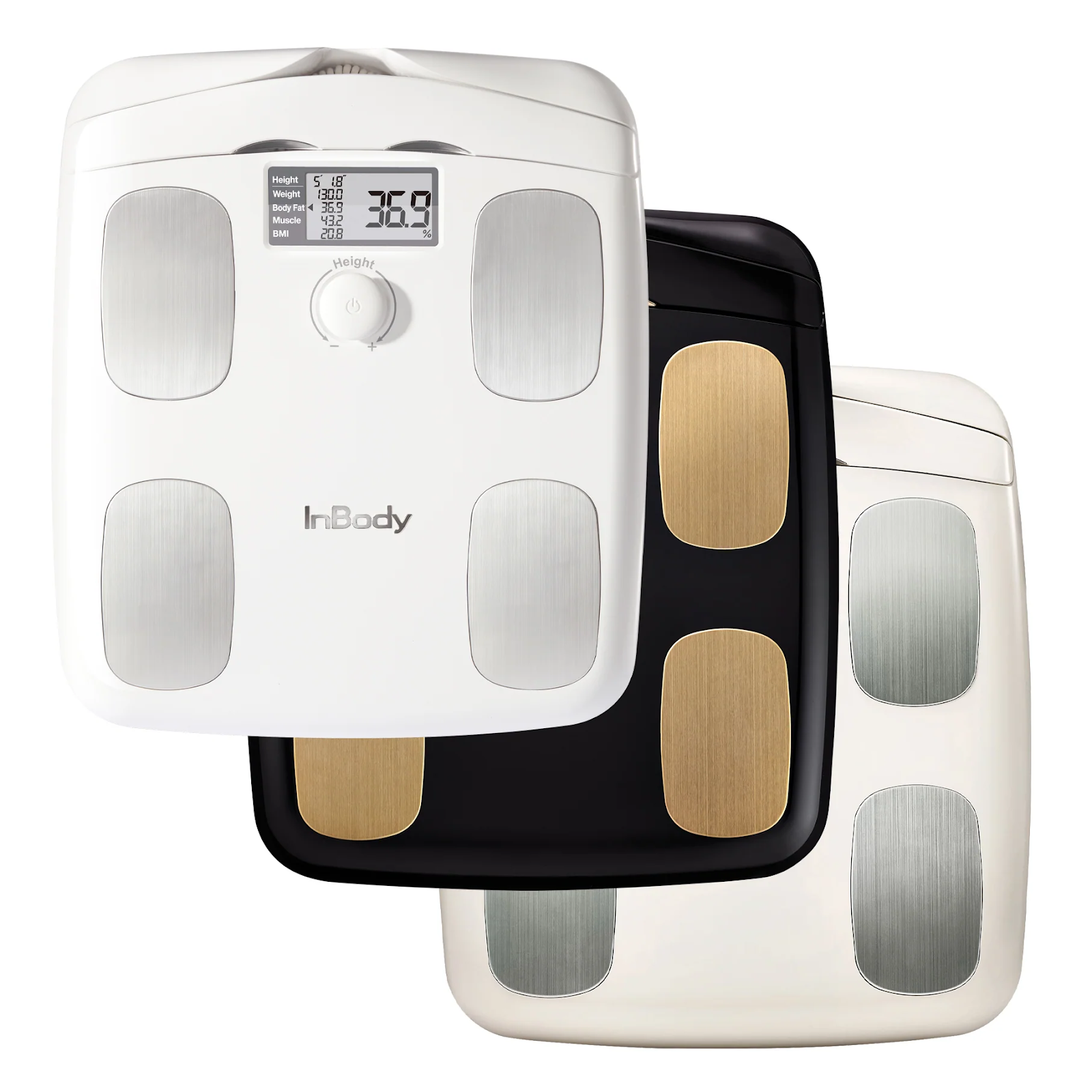

To understand the value proposition here, we have to look at the competitive landscape. For a long time, if you wanted a handle-based segmental scale, you were looking at the Withings Body Scan or a professional InBody unit.
| Feature | Wyze Scale Ultra BodyScan | Withings Body Scan | InBody Dial H20 |
|---|---|---|---|
| Price | $120 | $500 | $350+ |
| Electrodes | 8 (Handle + Feet) | 8 (Handle + Feet) | 8 (Handle + Feet) |
| Display | 4.3" Color TFT | 3.2" Color LCD | Basic LCD |
| Connectivity | Wi-Fi & Bluetooth | Wi-Fi & Bluetooth | Bluetooth Only |
| Segmental Analysis | Yes | Yes | Yes |
| Advanced Health | Heart Rate | ECG, Nerve Health, Vascular Age | Basic BIA |
The difference between the Wyze Scale Ultra and the BodyScan model is simple: the Ultra is the base smart scale, while the BodyScan adds the retractable handlebar. Comparing the Wyze BodyScan to the Withings version reveals a massive price discrepancy. While Withings offers clinical-grade extras like ECG and nerve health tracking, the core body composition technology is functionally similar.
Expert Tip: While BIA scales are excellent for tracking trends, no consumer scale is 100% as accurate as a medical DEXA scan. The value of the Wyze Scale Ultra lies in its consistency—using it under the same conditions every morning provides a highly reliable picture of your progress over time.
Limitations: Where Wyze Cut the Corners
You don't drop the price by $380 without making some tactical choices. While the Wyze Scale Ultra BodyScan feels premium, it doesn't quite match the "heavy-duty" luxury feel of the Withings. The underside of the scale and the handlebar housing are primarily plastic. It’s sturdy, but it lacks the monolithic glass-and-steel feel of the high-end competition.
Additionally, the user identification system relies heavily on weight. If you have a roommate or spouse within 3-5 pounds of your weight, you will occasionally have to manually select your profile on the screen. It’s a minor friction point, but one that more expensive scales sometimes handle better with advanced impedance signature recognition.
Finally, the handle's retractable cord is thin. It feels durable enough for daily use, but I wouldn't recommend letting a toddler play with it. It requires a gentle, steady pull to ensure it retracts smoothly back into its housing.
Pros & Cons
Pros
- Unbeatable Value: Professional 8-electrode analysis for $120.
- Segmental Data: Detailed muscle/fat breakdown for 5 body segments.
- Vibrant Display: Large color screen provides instant feedback without a phone.
- Ecosystem Friendly: Syncs with Apple Health, Google Health Connect, and Fitbit.
- Versatile Modes: Dedicated settings for athletes, pregnancy, and even pets.
Cons
- Build Materials: More plastic-heavy than $500 competitors.
- Battery Type: Uses AAA batteries instead of USB-C recharging (pro or con depending on preference).
- Identification: Can struggle to differentiate between users of near-identical weight.
Conclusion: A Game Changer for Data-Driven Fitness
The Wyze Scale Ultra BodyScan is a disruptive piece of health tech. It effectively democratizes high-end body composition analysis, moving it from the sports science lab to the average consumer's bathroom.
It is the perfect tool for bodybuilders looking to balance muscle growth, weight loss journeyers who want to ensure they are losing fat rather than muscle, and smart home enthusiasts who want a "frictionless" health tracking experience via Wi-Fi. While you might lose out on the ECG and premium metal build of a $500 Withings, you gain 90% of the functionality for 24% of the cost. In the world of smart home value, that is an unbeatable win.
FAQ
How accurate is the Wyze Scale Ultra BodyScan compared to a DEXA scan? While no BIA (Bioelectrical Impedance Analysis) scale is as accurate as a $100,000 DEXA X-ray machine, the 8-electrode system in the Wyze BodyScan is significantly more accurate than standard 4-electrode scales. It provides a highly reliable "trend line" that closely mirrors professional results.
Can I use the scale if I have a pacemaker? No. Like all BIA scales, the Wyze Scale Ultra sends a small electrical current through the body. While it is imperceptible, it can interfere with internal medical devices like pacemakers. You should use the "Weight Only" or "Pregnancy Mode" which disables the electrical current.
Does the scale work without the Wyze app? The scale requires the Wyze app for initial setup and to view historical trends and detailed segmental breakdowns. However, thanks to the 4.3-inch color screen and Wi-Fi syncing, you do not need your phone nearby to perform a daily weigh-in.
